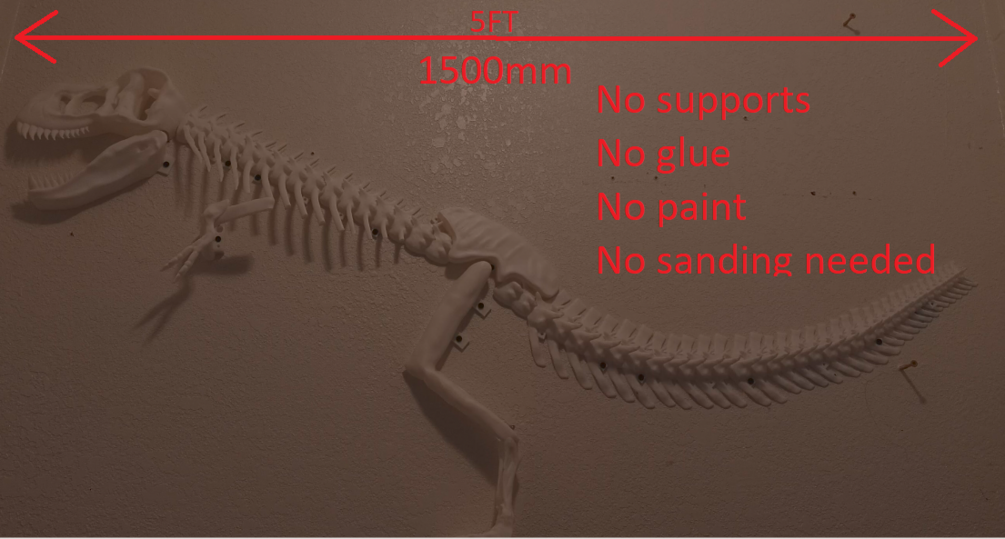

Large Trex 5FT or 1500mm long from head to tail
This is a print-in-sections model. Think of it as large puzzle pieces. I designed this model for hassle-free assembly—No supports, No glue, No paint, and No sanding needed. The model is about 5 feet (1500 mm) long from head to tail and was printed on a 220 mm bed printer. Once printed, it shouldn’t take more than 30 minutes to assemble. the youtube is the guide to assembly the trex is at the bottom of this page.
Agreement and Liability Disclaimer: By downloading and using these files, you agree to the following terms:
You understand and acknowledge that SparkPrinting3D is not responsible for any injuries, damages, or losses that may occur from the use or misuse of this file or the resulting 3D printed product. You assume full responsibility for the safe handling, assembly, and use of the product.
Guide and Support: The full guide will be available here with the YouTube video, and I also have it on my Discord server. I recommend using the Discord server I created, as I’ve tried to make it all organized there.
Printing Instructions:
Infill I recommend at a minimum of 10% pattern type I use is lines to get best print quality a recommend 0.4 nozzle at 0.2 mm layer height. I recommend at a minimum of two perimeters. Four bottom and top layers. Print speed I'm unfamiliar with the newer printers as mine is the ender 3 so I don't have input shaper you may want to print slower I'm going to put a recommendation of a maximum of 100mm millimeters per second for things like the ribs,teeth and the foot needs to be printed slower so it doesn't fail but depending on your printer it may need to even be slower and for the rest use your best judgment.
Part 03 needs to be printed slower than the other parts, ideally at 25 to 30 mm per second at most, as the neck is a more challenging print. Do not use sink filament or any other brittle filament. The best filaments to use are PLA Pro, PLA+, or PETG. Choosing a reliable brand is advisable.
Hardware Needed:
Safety glasses Gloves Long-sleeve shirt Pants Shoes Adjustable screwdriver with a bit extender (preferably 8 to 9 inches from the handle to reach between ribs and other hard-to-reach parts) Allen key or hex bit set for M4 bolts 18 #6 1-inch carbon steel screws to mount the dinosaur on the wall.
To connect the leg pieces together you will need 2 M4 35mm bolts
Safety and Usage Disclaimer:
These 3D printed models are not toys and are not intended for children. Choking Hazard: The models contain small, intricate parts that may pose a choking hazard. Keep out of reach of children and pets. Recommended for ages 14 and up. When assembling, do not stand directly underneath the 3D printed parts. You should be at least 18 inches from the wall to avoid injury if it falls. Models may contain sharp and pointy parts, such as ribs, teeth, and claws. Use safety glasses, gloves, long sleeves, and proper footwear when assembling. Do not place the model in high-traffic areas, such as hallways, or areas where people walk directly underneath. Avoid placing the model behind couches or other seating areas where falls could cause injury. The creator assumes no responsibility for injuries or damages resulting from the use or misuse of these models. This includes damages to property, such as televisions or other items, that may occur if the model falls. During the assembly process, 3D printed parts should be placed in a box or out of the way to avoid tripping, stepping, or falling on them, which could cause serious injury. SparkPrinting3D will not be held responsible or liable for any damages or injuries occurring during the assembly process. License Terms
1. License Type Based on Purchase:
Personal License:
Applicable if you purchased a single-use license without a commercial option or if you subscribed to a personal plan.
Terms of Use: Non-Commercial Use Only.
Commercial License:
Applicable if you subscribed to a commercial plan.
Terms of Use: Commercial Use Permitted under specific conditions.
2. Terms of Use:
A. Personal License:
Non-Commercial Use Only:
These 3D printable files are for personal, non-commercial purposes only.
Prohibition on Use in Machine Learning and AI:
These files may not be used in any machine learning or AI programs for training or any other purpose.
No Modifications:
You may not modify, adapt, or create derivative works from these files.
No Distribution or Sharing:
You may not distribute, share, or make these files available to others in any form.
Social Media Use:
You are allowed to share pictures and videos of your 3D printed creations on social media. However, sharing the files themselves is strictly prohibited.
B. Commercial License:
Conditions for Commercial Use:
Commercial use is only permitted if you have an active commercial license subscription from SparkPrinting3D.
The licensee is responsible for ensuring that all customers are informed of safety and usage instructions related to these 3D printed products,
including providing appropriate safety disclaimers and warnings regarding potential hazards.
The licensor assumes no responsibility for any injuries, damages, or claims arising from the use or misuse of the licensed products by the licensee or their customers.
You are limited to using a maximum of 10 printers for production. Mass manufacturing or large-scale production is strictly prohibited.
Prohibition on Use in Machine Learning and AI:
These files may not be used in any machine learning or AI programs for training or any other purpose.
No Modifications:
You may not modify, adapt, or create derivative works from these files.
No Distribution or Sharing:
You may not distribute, share, or make these files available to others in any form.
Social Media Use:
You are allowed to share pictures and videos of your 3D printed creations on social media. However, sharing the files themselves is strictly prohibited.
3. Changes to Terms:
These terms are subject to change at any time at the discretion of SparkPrinting3D. It is recommended to check the Discord channel for the latest terms of use.
